S4E + EXPANSION MODULES

Cash Deposit Solution

Consillion’s smart safe deposit is a proven solution specially designed for the retail and hospitality industry with over 350,000 devices rolled out worldwide. The Tidel S4E is a customisable under-the-counter deposit note solution with the ability to add different modules based on customers’ requirements for a full tailored solution. Modules include the dispense of coins and notes, dispense rolled coin, and enable expanded note deposit and validation capabilities. The S4E seamlessly integrates with the Tidel cloud-based platform, allowing real time tracking, automated reconciliation, and providing customers full visibility of all transactions per location.

Datasheet

Functionality

7” colour console screen
Power supply and main CPU board accessible via the console
Support for single or bulk note validators
Support for standard or XL cassettes
PIN and/or iButton, allows managed access to functions, reports, and instant access
Note validator maintenance door – enables validator heads to be removed in the event of a note jam
Connects to a wide range of Tidel expansion peripherals

Technical Specifications

S4e Cash Deposit / Smart Safe Base Weight	68Kg
S4e Cash Deposit / Smart Safe Base Dimensions	311mm (W) x 584mm (D) x 781mm (H)

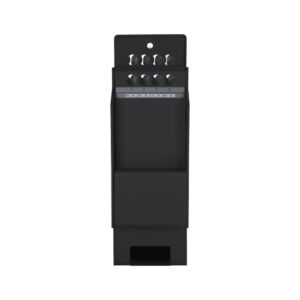

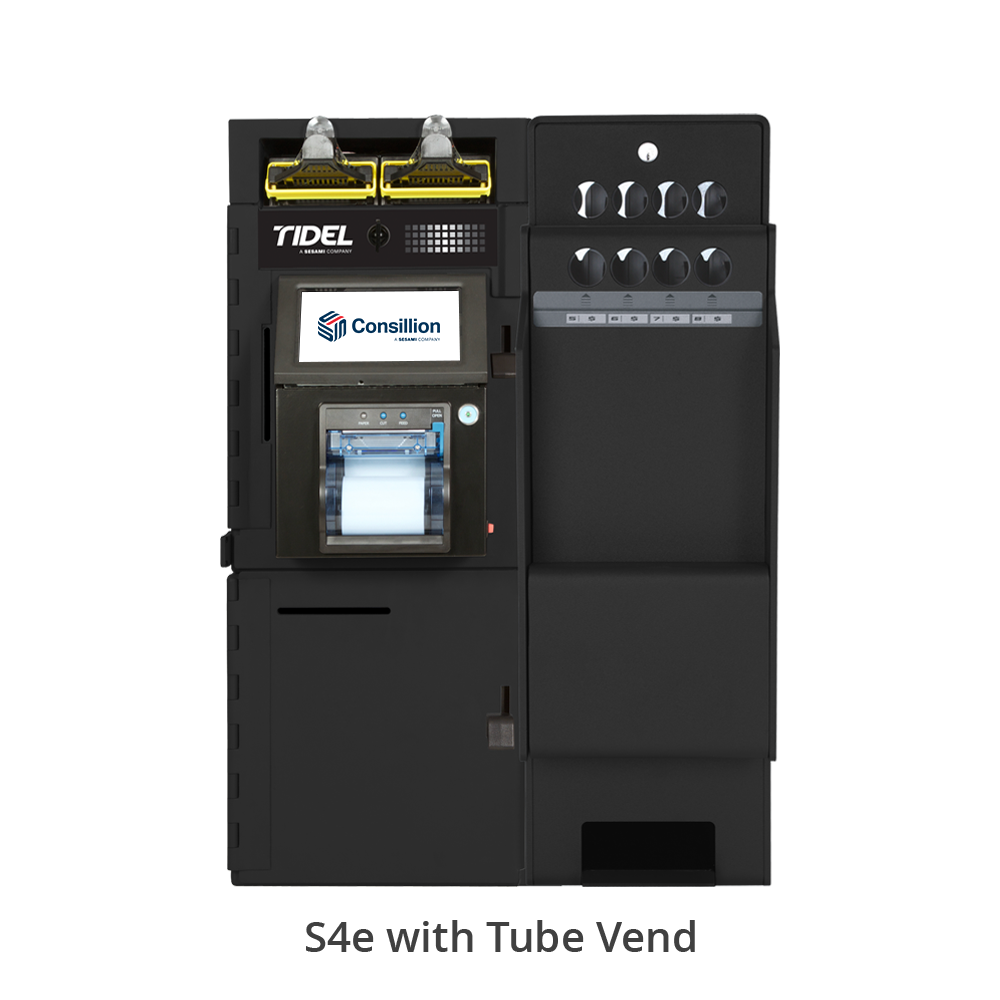

Tube Vend Weight	75Kg
Tube Vend Dimensions	235mm (W) x 508mm (D) x 781mm (H)

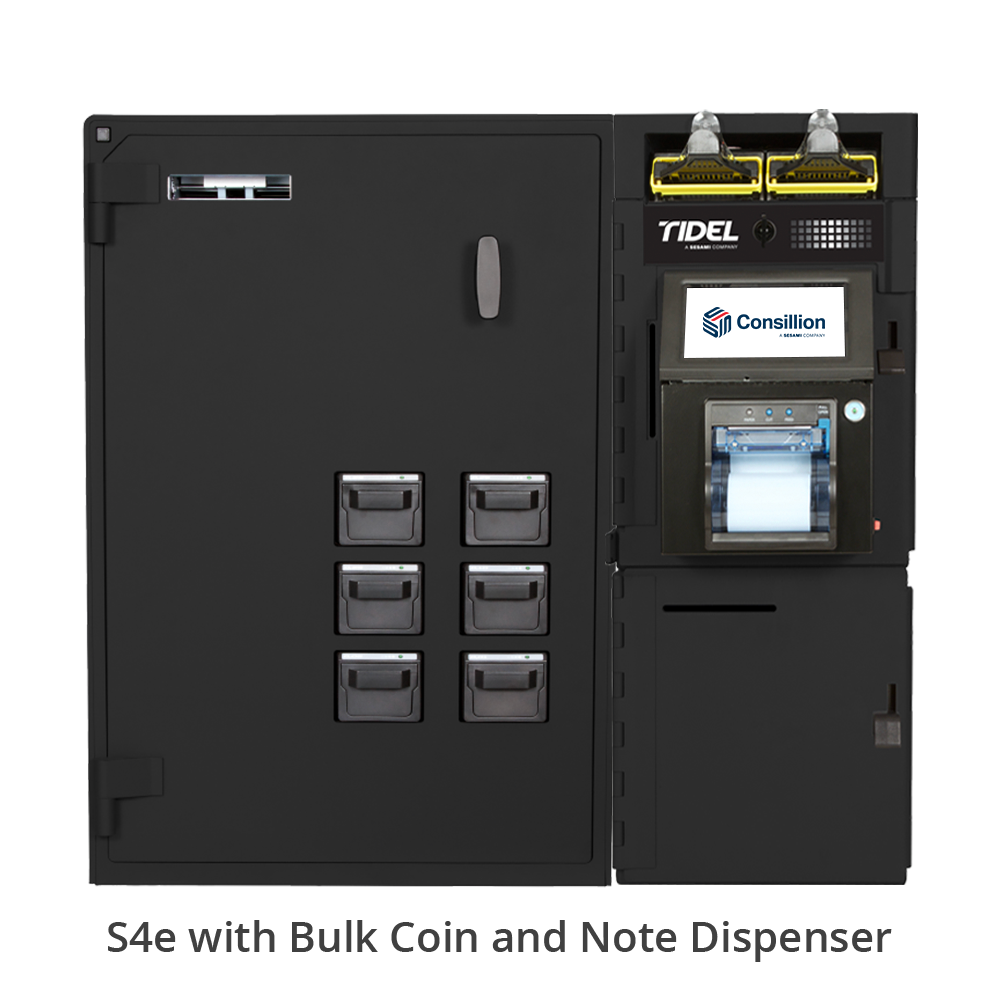

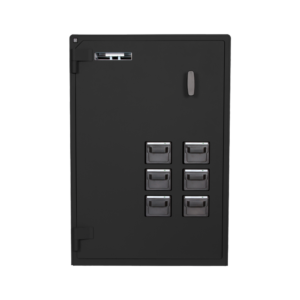

Bulk Coin and Note Dispenser Weight	225Kg
Bulk Coin and Note Dispenser Dimensions	533mm (W) x 483mm (D) x 781mm (H)

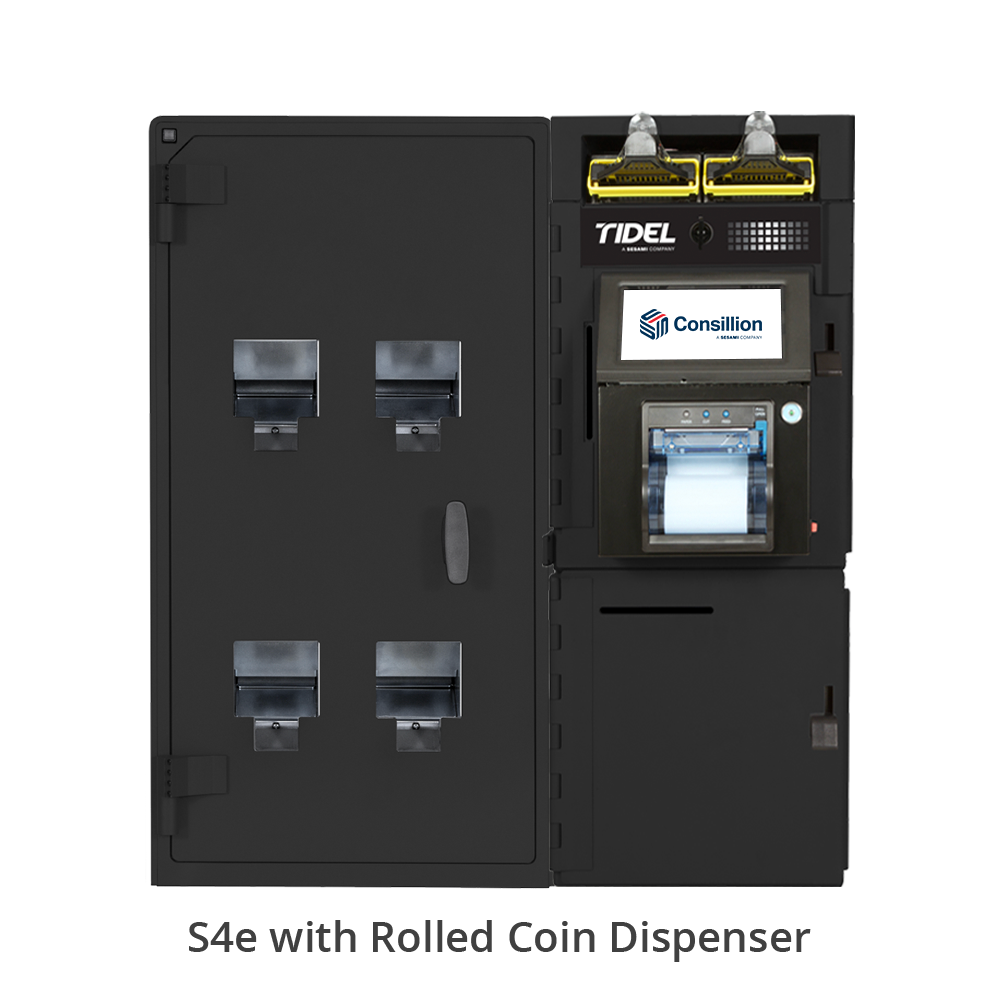

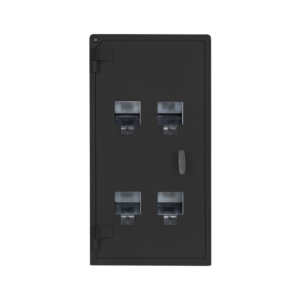

Rolled Coin Dispenser Weight	167Kg
Rolled Coin Dispenser Dimensions	406mm (W) x 686mm (D) x 781mm (H)

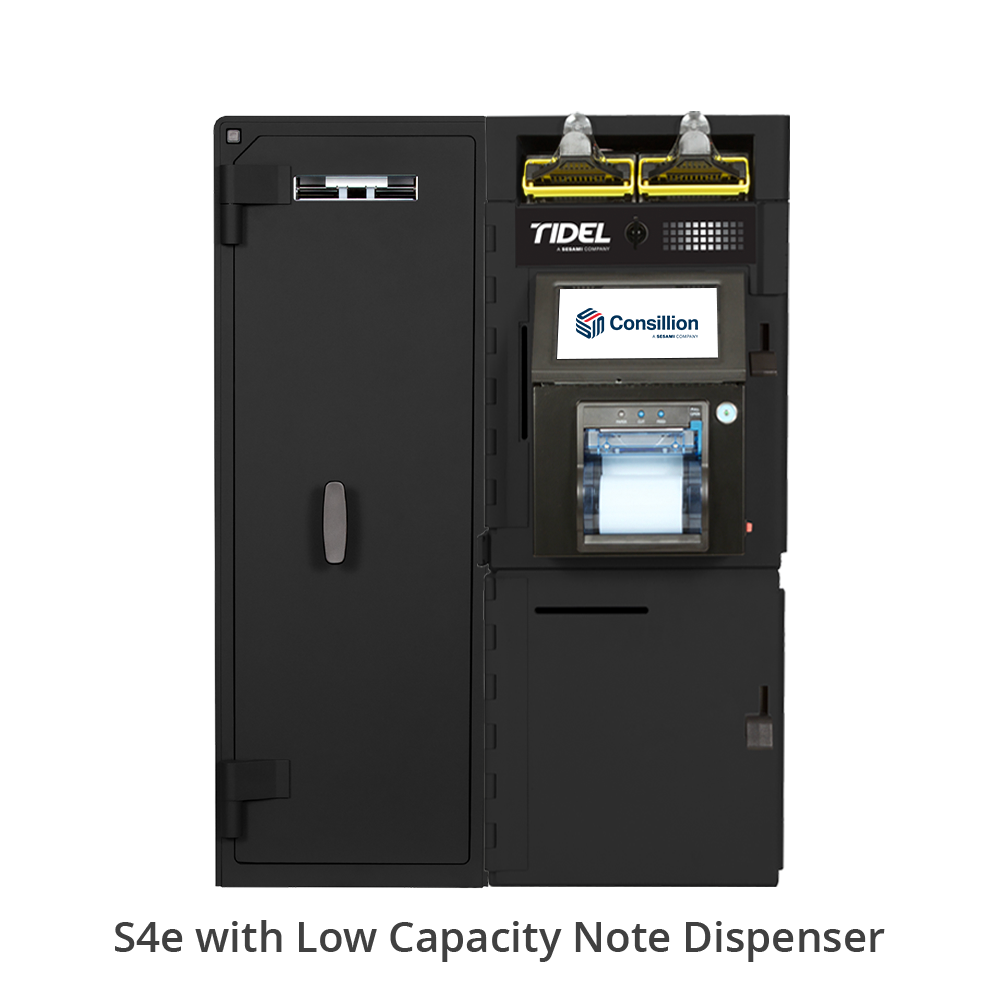

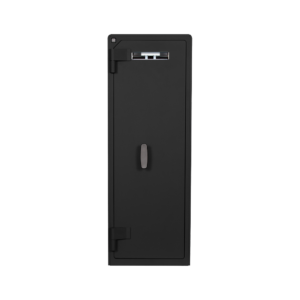

Low Capacity Note Dispenser Weight	114Kg
Low Capacity Note Dispenser Dimensions	311mm (W) x 508mm (D) x 781mm (H)

Benefits

Ideal for petrol and convenience, pharmacies, QSR, and franchise model.

Reduce labour cost by removing manual cash counting and removing the need for physical banking activity

Streamline processes: Till preparation, change requests, and banking

Enhance security and safety

Minimise financial loss

Visibility in real time via our cloud-based platform

Increase cash flow with same day banking

Description and Features

BASE

EXPANSION MODULES


	S4E Deposit Safe	Tube Vend	Bulk Coin and Note Dispenser	Rolled Coin Dispenser	Low Capacity Note Dispenser
Description	The S4e and supported peripherals enable retail and hospitality venues to recycle coins, dispense coins and notes, and scale their note deposit and validation capabilities. It also contains an integrated thermal printer with receipt cutter.	When utilised alongside the S4e, the Tube Vend assist venues in handling their in-store change funds, minimising the chance of internal theft, optimising in-store management, and enhancing overall operational efficiency.	The Bulk Coin and Note Dispenser, when paired with the S4e, is designed for venues that have a need to dispense notes and coins in high volume, leveraging one integrated system. The Bulk Coin and Note Dispenser offers coin and flat note dispensing in any quantity.	The S4e Rolled Coin Dispenser, powered by the S4e, offers a convenient way to dispense rolled coin on demand, using a secure and auditable process. It is an ideal solution for high volume cash environments.	The S4e Low Capacity Note Dispenser is designed for venues that have a need to dispense notes throughout the day, using a secure and auditable process.
Features	7” colour console screen Power supply and main CPU board accessible via the console Support for single or bulk note validators Support for standard or XL cassettes PIN and/or iButton, allows managed access to functions, reports, and instant access Note validator maintenance door – enables validator heads to be removed in the event of a note jam	Offers 8 columns that can fit up to 11 tubes per column, and each tube can be fitted with either notes or coins Integrated tube loading gate that prevents unauthorised loading of tube Up to five adjustable time delays between each tube vend occurrence Optional detached Tube Vend available for space-constrained environments	All bulk coin and note dispense transactions are completely auditable and managed by individual user PIN Buy Change function supports exchange of large notes or smaller notes/coins One touch start-of-shift change fund for both coins and notes	Dispenses rolled coin on demand Buy Change function allows for the exchange of a note for rolled coin Contains a Standard Capacity System and a High Capacity System	Dispensing notes and accessing the note cassettes are completely auditable and managed by individual user PIN Note dispensing limits can be set on a per individual basis Can be connected to Ethernet network for interface to POS, back office PC, or remote locations Includes a complete cash management application and an independent note reject tray
